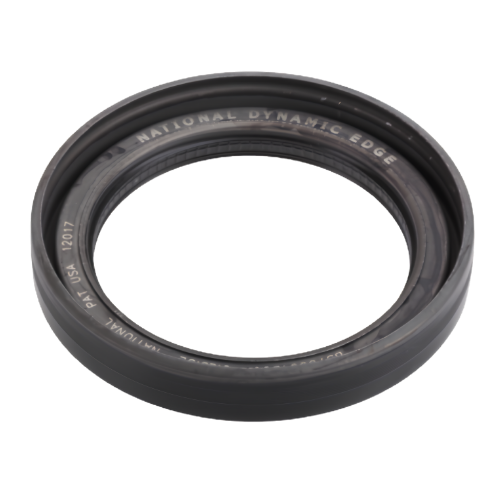

370001A Wheel Seal

The part number 370001A primarily refers to the National Seals 370001A Wheel Seal. This heavy-duty, unitized oil bath wheel seal is manufactured by Federal-Mogul, now under the Timken family. It is specifically engineered for the front steer axles of Class 6–8 commercial trucks and medium-duty vehicles.

Technical Specifications

• Component Type: Unitized Oil Bath Wheel Seal
• Shaft Diameter (Inner): 3.500 inches (88.90 mm)
• Housing Bore Diameter: 4.842 inches (122.99 mm)
• Outer Diameter: 4.855 to 4.873 inches (123.14 mm)
• Overall Width: 0.925 inches (23.50 mm)
• Material: Abrasion-resistant Nitrile rubber with a spring-loaded main lip
• Temperature Range: -40°F to 225°F (-40°C to 107°C)
• Installation Tool: National RD307
• Axle Rating: Designed for 12,000 lb front steer axles

Key Design Features

• Dynamic Edge® Technology: Utilizes a sinusoidal wave pattern that actively pushes dirt, moisture, and road contaminants away from the seal face.
• SURE-LOCK® Ribs: Built-in rubber inner and outer diameter ribs prevent fluid bypass along the shaft or through minor hub bore imperfections.
• Unitized Construction: Self-contained components maximize structural integrity and protect the delicate main sealing lip during installation.
