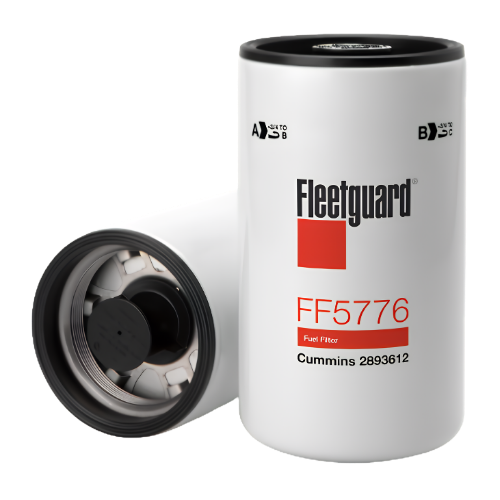

FF5776 Fuel Filter

The Fleetguard FF5776 is a high-efficiency, spin-on secondary fuel filter designed to protect heavy-duty diesel engines. Manufactured by Cummins Inc., this filter ensures clean fuel systems by removing harmful contaminants and moisture. It is compatible with a range of heavy-duty diesel engines and vehicles, making it an essential component for maintaining engine performance and longevity.

Key Technical Specifications

• Filtration Efficiency: Achieves a 98.7% efficiency rating at 5 microns.
• Filter Media: Features multi-layer StrataPore media for superior dirt-holding capacity.
• Dimensions:
  • Overall height: 226.52 mm (8.918 in)
  • Maximum outer diameter: 119.89 mm (4.72 in)
• Thread Size: Built with an M90 X 2-7H INT (M90 x 2.0 mm) mounting thread.
• Standpipe: This model does not include a standpipe.

Engine & Vehicle Compatibility

This filter is specifically designed for Cummins ISX, ISX11.9, ISX15, and QSX diesel engines (primarily 2010 models and newer). It serves as a standard replacement part for heavy-duty trucks.

Cross-Reference & Part Numbers

The FF5776 filter replaces or corresponds to the following manufacturer part numbers:

• Cummins: 2864993, 2893612, 3685306, 4331007
• Donaldson: P555776
• Baldwin: BF9885
• Wix: WF10123
• NAPA: 600123

Note: For an extended-service media upgrade, this filter can be interchangeably replaced by the Fleetguard FF5825NN or FF5971NN NanoNet filters on the same mount.
