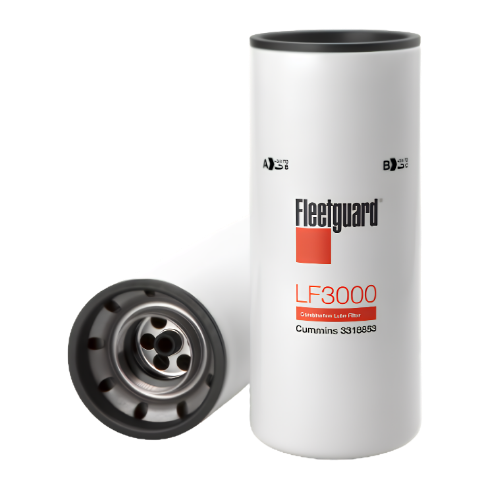

LF3000 Oil Filter

The Fleetguard LF3000 is a premium spin-on combination lube filter specifically designed for heavy-duty diesel engines, primarily manufactured by Cummins. It features an innovative dual-design, integrating both full-flow and stacked-disc bypass filtration within a single canister to ensure maximum engine protection.

Key Specifications

• Media Type: High-efficiency StrataPore synthetic media.
• Efficiency: 98.7% at 30 microns.
• Thread Size: 2 1/4-12 UNS-2B.
• Dimensions: 11.88 inches (301.75 mm) overall height with a 4.68-inch (118.87 mm) gasket outer diameter.
• Standpipe: Yes.
• Bypass Valve Setting: 0 PSI (0 kPa).

Engine & Vehicle Applications

This filter serves as a direct OEM replacement for Cummins part number 3318853. It is widely used in:

• Agricultural Equipment
• Construction Machinery
• On-highway Commercial Trucks

Compatible Engine Models:

• Cummins 6CTA, L10, M11, N14, ISC 8.3L, ISL 9.0L, QSM, and KTA variants.

Upgrade Note:

Fleetguard offers the LF9009 as an extended service interval (ESI) upgrade. This upgrade incorporates advanced Venturi bypass technology, enabling longer drain intervals.

Major Brand Cross-References

If an alternative is needed, the LF3000 corresponds to the following part numbers:

• Baldwin: BD103
• Donaldson: P553000
• Wix: 51748
• Luber-Finer: LFP3000
• NAPA: 1748
