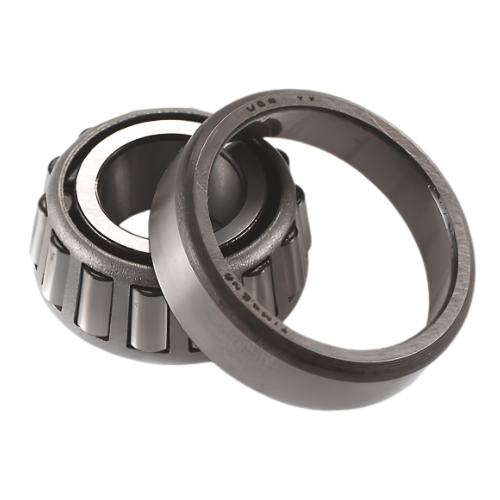

SET403 Wheel Bearing and Race Set

SET403 is an industry-standard heavy-duty tapered roller wheel bearing and race assembly, primarily used for inner R-drive truck axles. Manufactured by several top-tier automotive and heavy equipment brands, this set features a factory-matched pair comprising:

• 594A bearing cone (inner ring)
• 592A bearing cup (outer race)

Technical Specifications:

• Bore Diameter (Cone I.D.): 3.750 in. (95.25 mm)
• Cup Outside Diameter (O.D.): 6.000 in. (152.40 mm)
• Overall Bearing Width: 1.563 in. (39.688 mm)
• Cone Width: 1.430 in. (36.32 mm)
• Cup Width: 1.187 in. (30.16 mm)
• VMRS Code: 018-005-003 / 053016001
• Load Rating Application: 38,000–48,000 lb drive axles
