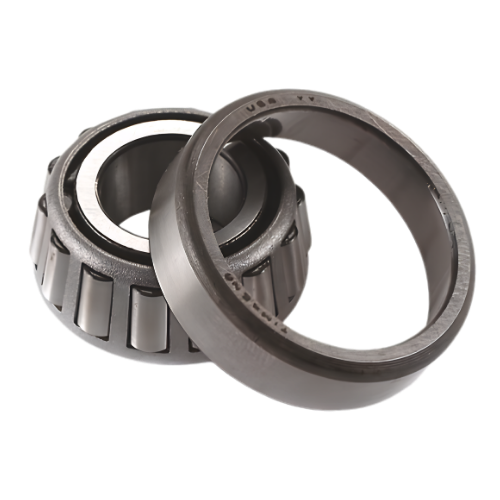

SET413 Wheel Bearing and Race Set
Product Details
Brand: Timken
Overview
The SET413 is an industry-standard heavy-duty tapered roller wheel bearing cup and cone set. It is widely manufactured by top-tier brands such as Timken, SKF, and Meritor, specifically designed for use in Class 6–8 commercial trucks, fleet vehicles, and trailers.
Key Components
The pre-matched set consists of two fundamental pieces:
- Cone (Inner Ring Assembly): Part number HM212049 (includes the cage and roller set).
- Cup (Outer Ring): Part number HM212011.
Technical Specifications
The standard dimensions of the assembly are engineered for precision heavy-duty operation:
- Inside Diameter (Bore): 2.625 inches (66.675 mm)
- Outside Diameter: 4.813 inches (122.238 mm)
- Overall Width (Thickness): 1.500 inches (38.100 mm)
- Total Weight: Approximately 4.20 lbs (1.9 kg)
- Material: High-grade alloy steel
Common Applications
The SET413 is optimized to handle massive combined radial and axial loads and is commonly used in the following applications:
- Front Steer Axles: Functions as the inner front wheel bearing on medium and heavy-duty trucks.
- Trailer Axles: Functions as the outer wheel bearing on TN and N-series trailer axles.
