Tarp Drive DC Motor kit 12v 50:1 Gear Ratio
SKU 10541
$266.72
In stock: 5 available
1
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Have questions?
Tarp Drive DC Motor kit 12v 50:1 Gear Ratio
Product Details
Brand: NYC
The 12V DC Tarp Drive Motor Kit with a 50:1 gear ratio and chrome cover is the standard, heavy-duty replacement engine designed to power electric automated roll-up tarp systems on dump trucks and trailers up to 28 feet long.
Key Technical Specifications
Most variations of this universal commercial-grade motor share the following baseline specifications:
- Power Source: 12-Volt DC, typically drawing 40 Amps.
- Performance: Ranges from 0.8 HP (600W)
- Gear Ratio & Speed: 50:1 gear ratio yielding an output speed of 72 to 90 RPM with around 26 Nm (836 in-lbs) of high torque.
- Drive Mechanism: Direct drive worm-gear setup with an inherent braking mechanism to prevent the tarp from unspooling on its own.
- Output Shaft: Standard 3/4" diameter extended shaft (3-3/4" to 4" long) featuring through-holes for standard pin connection.
- Mounting: Universal 5-hole mounting pattern, engineered to align perfectly with industry-standard 3-bolt or 4-bolt configurations.

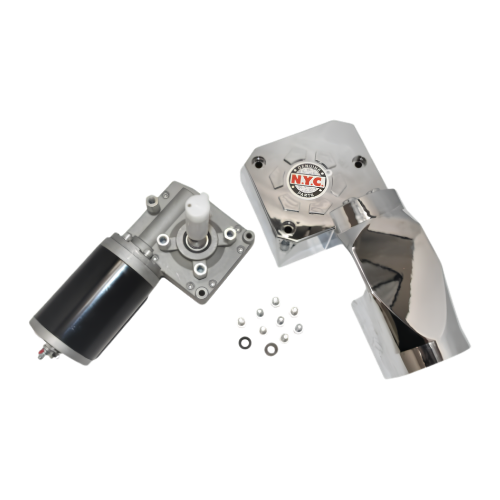

What is Usually Included in the Kit
- 12V DC Reversible Tarp Motor
- Polished Chrome Plastic or Metal Protective Cover
- Chrome Cover Mounting Bracket & Faceplate
- Necessary Mounting Bolts, Washers, and Pins
